製品詳細
起源の場所: 中国
ブランド名: Longyuan Lock
証明: FCC CE RoHS ISO9001
モデル番号: LY-8839
支払いと送料の条件
最小注文数量: 1部分
価格: negotiable
パッケージの詳細: パッケージ: カートンボックス、50 個/層、100 個/カートン;カスタマイズされたパッケージが利用可能です。
受渡し時間: 5-15work幾日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 10000pcs/day
ロック測定: |
80mmx80mmx14mm |
ラッチ付き重量: |
268g |
ロック材料: |
ステンレス鋼、粉末冶金、SUS304 |
電圧: |
DC12(電圧5-24Vカスタマイズ) |
現在: |
200mA |
最高力: |
24W |
塩水噴霧試験: |
≥48hours |
停電間隔: |
>5sec |
ロック測定: |
80mmx80mmx14mm |
ラッチ付き重量: |
268g |
ロック材料: |
ステンレス鋼、粉末冶金、SUS304 |
電圧: |
DC12(電圧5-24Vカスタマイズ) |
現在: |
200mA |
最高力: |
24W |
塩水噴霧試験: |
≥48hours |
停電間隔: |
>5sec |

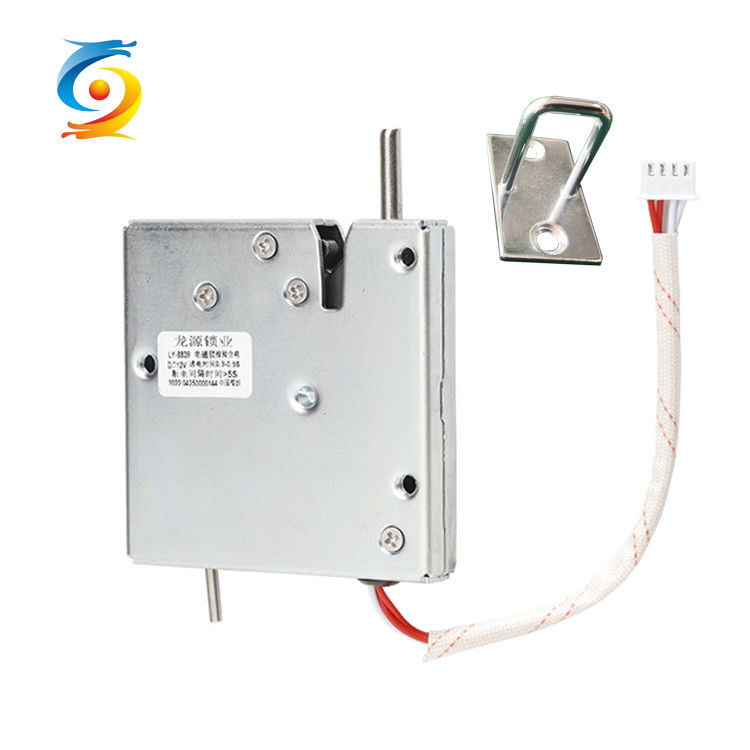

Stainless Steel Solenoid Cabinet Lock 12V Silver Color Locks for Dry Cleaning Lockers
Product Features
LY-8839 is an electronic magnetic lock developed by Shenzhen Longyuan Lock company.
The electronic locker lock is activated by a high-strength engine gear, and has a fully
automatic unlocking, which is suitable for kinds of different parcel locker, delivery locker,
storage locker, express locker, package locker, modular Parcel Locker, automated
click & collect locker,supermarket self-service cabinet, beach locker etc.
Theory
The electric lock is based on 51 series single-chip microcomputer (AT89051) and
equipped with corresponding hardware circuit to complete password setting, storage,
identification and display, drive electromagnetic actuator and detect its driving current
value, receive alarm signal sent by sensor, send data and other functions. The single-chip
microcomputer receives the typed code and compares it with the password stored in the EEPROM.
FAQ
1. Q: What is your sample policy?
A: Free samples could be sent to test as request. We can arrange sample by DHL,
UPS, FedEx or TNT, but you should charged the freight cost.
2. Q: How many days to arrange samples?
A: If without extra demand, it will be sent within 3work days.
3. Q: What payment terms do you do?
A: We can accept T/T, West Union, cash, LC etc .
4. Q: Can I custom outer leakage cable length and connector?
A: Yes, different cable materials, length and connectors all can customized upon your actual demands.
Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8839
|
|
Lock Body size
|
80mmx80mmx14mm
|
|
Weight with hook
|
268g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
6V
|
|
Current
|
2A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
