製品詳細
起源の場所: 広東省、中国
ブランド名: LONGYUAN
証明: FCC CE RoHS ISO9001
モデル番号: LY-8821
支払いと送料の条件
最小注文数量: 10部分
価格: negotiable
パッケージの詳細: カートン: 100PCS/CTN または顧客の要件に応じてカスタマイズされたパッケージ。パッケージの材質 : K=K 強化カートン
受渡し時間: 5-15work幾日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力: 10000pcs/day
ロック本体サイズ: |
70.6mm×55.6mm×13.4mm |
フック付き重量: |
166g |
ロック材料: |
SPCC、粉末冶金 |
評価される電圧: |
DC12V |
現在: |
2A |
最高力: |
24W |
仕事の温度: |
-40℃への+80℃ |
塩水噴霧試験: |
≥48hours |
停電間隔: |
>5sec |
使用法: |
スーパーマーケットのセルフサービスのキャビネット、小包のキャビネット、自動販売機等 |
ロック本体サイズ: |
70.6mm×55.6mm×13.4mm |
フック付き重量: |
166g |
ロック材料: |
SPCC、粉末冶金 |
評価される電圧: |
DC12V |
現在: |
2A |
最高力: |
24W |
仕事の温度: |
-40℃への+80℃ |
塩水噴霧試験: |
≥48hours |
停電間隔: |
>5sec |
使用法: |
スーパーマーケットのセルフサービスのキャビネット、小包のキャビネット、自動販売機等 |

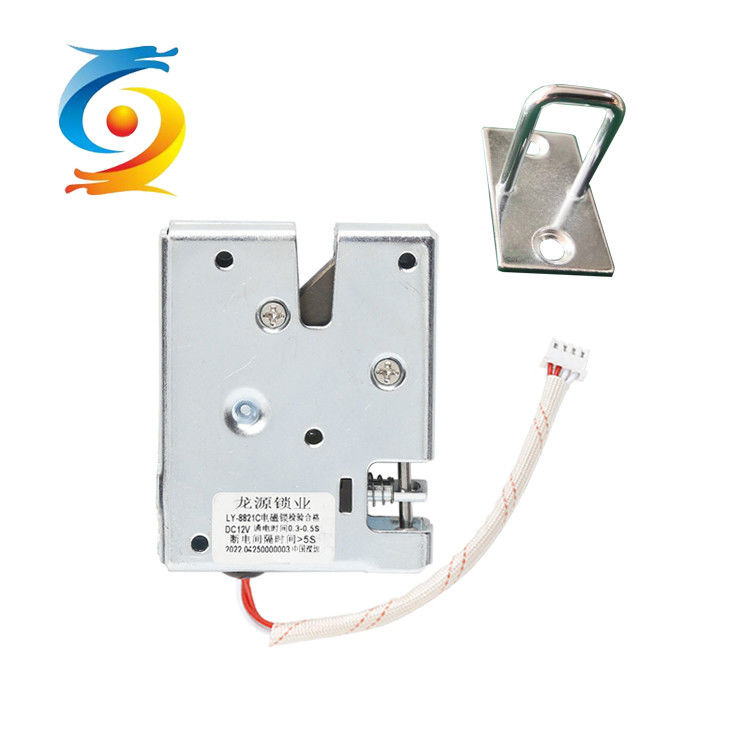

Electrify Silver smart bookcase lock intelligent mini library cabinet electronic lock
Product Features
LY-8821 electromagnetic lock is designed by Shenzhen Longyuan Lock factory with 17+years experience.
LY-8821 electronic magnetic lock has the advantages of high sensitivity, shockproof, pry-proof, and anti-rust capabilities, which fully guarantee the reliability and stability of customers when using it.
Principle
It is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM.
Company Introduction
1. Good lockers equipped good locks, good locks found in Longyuan
2.From design,research,production,we can provide one-stop service,we can customized products upon customer actual demands, OEM and ODM orders are warmly welcome.
3.Different models of products meet different requirements of customers
4.Various product tests are the best guarantee for our company's product quality
Technological Parameter
|
Product name
|
electrify smart bookcase lock
|
|
Place of Origin
|
China
|
|
Brand Name
|
Longyuan lock
|
|
Model Number
|
LY-8821
|
|
Lock Body size
|
70.6mmx55.6mmx13.4mm
|
|
Weight with hook
|
166g
|
|
Lock Body Material
|
SPCC
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(Voltage customized)
|
|
Current
|
2A
|
|
Min Unlock Voltage
|
9.5V
|
|
Max power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Work temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Salt spray testing
|
≥48hours
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing & Delivery
Carton:100PCS/CTN or Customized packaging according to customer requirements.
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.Carton size:350mmx200mmx140mm.
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
